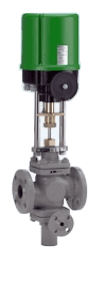

Manufacturer : RTK ( Regeltechnik Kornwestheim GmbH)
Made in Germany
Pressure Rating : PN 16, 25, 40, 63, 100 & 160; ANSI class 150 & 300
Nominal valve size : DN 15 to 400
Material : Cast Iron, ductile iron, cast steel, high temperature cast alloy & stainless steel; ASTM material A216 WCB, A217 WC9 & CF8M
Connection : Flange to DIN / ANSI or Butt weld
Motorised & Pneumatic actuated.
Design : 2 and 3 way valves; rapid action intermittent blowdown valves, steam conditioning (PRDS), bellow seal, continuous blowdown valves, self acting regulators special valves such as boiler feedwater with spill back (pump recirculation) and refrigeration valves.
View MoreManufacturer : Igema ( IGEMA GmbH)
Made in Germany

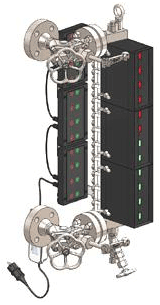

Reflex, transparent, bi-colour, magnetic flap indicator, remote level indicator.
Range : 200 to 6000 mm
Material : Cast steel, & stainless steel
Gauge valve with single or double isolating valve, drain valve.
Connection : flanges in DIN or ANSI, sizes from 20 to 50 mm
Pressure Rating : PN 16, 25, 40, 63, 100 & 160 up to 320; ANSI class 150 & 300 up to 1500
Design : reflex, glass-mica, mica, bi-colour (red-green or black-white),
View MoreManufacturer : RTK/Igema
Made In Germany
Level Control, Pressure control, Temperature control Systems
TDS control, Boiler Blowdown Systems
Material : Cast steel, & stainless steel
Pressure Rating PN 16, 25, 40, 63, 100 & 160 up to 320; ANSI class 150 & 300 up to 1500
Design : electronic, float operated, self actuated, single and multiple electrodes, self-monitoring with periodic self checking, 3 point step, 4 to 20 mA, PT 100, conductivity, capacitance measurement.
